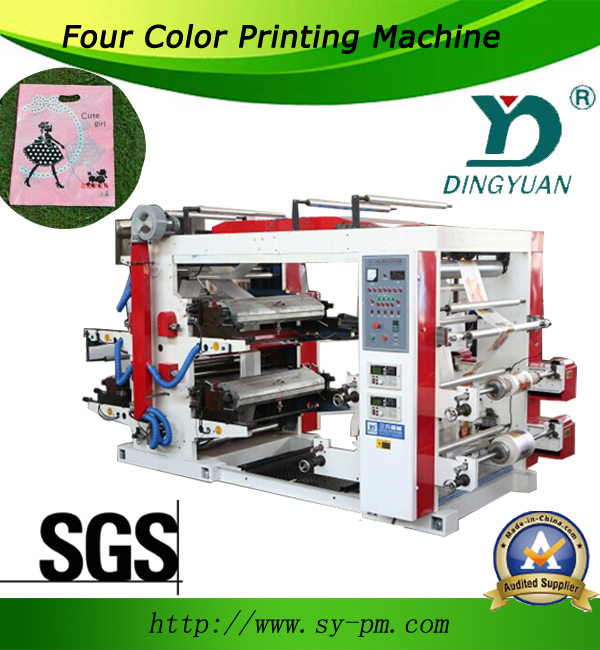

YT-4600/4800/Four-Colour Flexographic Printing Machine

Quick Details

• Type: Flexographic Printer
• Condition: New
• Plate Type: Letterpress
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: DINGYAUN
• Model Number: YT- 41000
• Usage: Plastic
• Automatic Grade: Automatic
• Color & Page: Multicolor
• Voltage: 380v
• Gross Power: 2.2kw
• Dimensions(L*W*H): 4200*2000*2400mm
• Weight: 4000kg
• Certification: SGS,CE,ISO9001
• After-sales Service Provided: Engineers available to service machinery overseas
• color: blue/red
• computer: yes
• automatic: yes
• warranty: one year
• max printing width: 960mm
• max printing length: 100-1000mm
• Thickness of plate: 2.38mm
• the heating zones: 4 color: 5 units
• auxiliary drying length: 1000mm
• rewinding method: friction type

Packaging & Delivery

	http://www.youtube.com/watch?v=z01h2LvSRrU&feature=youtu.be
	bag.maker
	0086-13626771167

Application:

It is suitable for polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Technical Description:

1.   Easy operation, flexible starting, accurate color register.

2.   The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.

3.   Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4.   The printing ink is spread by the knurled cylinder with even ink color.

5.   Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6.   360° continuous and adjustable longitudinal register devices.

7. The imported frequency control of motor speed adapts to different printing speeds.

8.  There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Parameters:

Machine Model	YT-4600	YT-4800	YT-41000
Printing Color	4	4	4
Raw Material Max Width	600mm	800mm	1000mm
Printing Length	180-960mm	180-960mm	180-960mm
Printing Plate Lifting System	manual	manual	manual
Mechanical Speed	60m/min	60m/min	60m/min
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Anilox Cylinder	metal	metal	metal
Register Precision	±0.5mm	±0.5mm	±0.5mm
Rewinder/Unwinder Diameter	450mm	450mm	450mm
Master Motor	2.2KW	3KW	3KW
Electrical Heater	14KW	17.5KW	21KW
Blower of Heater	450W	500W	550W
Inking Motor	0.55KW	0.55KW	0.55KW
Master Frequency Inverter	2.2KW	3KW	3KW
Weight	2500kg	3000kg	3500kg
Total Power	19KW	22KW	25KW

The Main List of Detailed Configuration:

Parts Name	Origin
Main Motor (Frequency Conversion Motor)	(Shanghai)
Ink Motor	(Shanghai)
Host Converter	(Hong Kong)
Fan	Shanghai)
Aluminum Guide Roller	(Taiwan)
Anilox Roller	(China)
Rubber Roller	(China)
Magnetic Braker	(Shanghai)
Tension Controller	(Shanghai)
Low-voltage Electrical Appliances	(China Chint Group)
Photoelectric Correction	(China)
The Switch	(Schneider)
Electrical Control Box	(China)
Pneumatic Components	(China)
Main Frame	(China)
Machine Casting	(Shanghai)
PLC	(Mitsubishi, Japan)
Air Shaft (2pcs)	(China)
Web Guide	(China)
Hydraulic Loading	(China)

Free spare part list:

Spare Parts Name	Quantity
Heater Pipe	1 pc
Oil Gun	1 pc
Switches	5 pcs
Current Contactor	2 pcs
Tool	1 pc
Tool Box	1 set

More Pictures:



Packaging & Shipping:

Sanyuan Factory will pack the machine with two times film package.

If customer needs wooden case, it needs additional charge.

Shipping sea freight cost paid by buyer.

Sanyuan Factory should help buyer to choose a good shipper agent, to

insure the machine arrive in buyer country safely.
