Quick Details

·         Type: Flexographic Printer

·         Condition: New

·         Plate Type: Letterpress

·         Place of Origin: Zhejiang, China (Mainland)

·         Brand Name: SANYUAN

·         Model Number: YT- 6600/6800/61000

·         Usage: Plastic film printer

·         Automatic Grade: Automatic

·         Color & Page: Multicolor

·         Voltage: 380v

·         Gross Power: 25kw

·         Dimensions(L*W*H): 4200*2000*2400mm

·         Weight: 3500kg

·         Certification: SGS,CE,ISO9001

·         After-sales Service Provided: Engineers available to service machinery overseas

·         model: YT- 61000

·         computer: yes

·         automatic: yes

·         warranty: one year

·         max printing width: 560/760/960mm

·         max printing length: 100-1000mm

·         Thickness of plate: 2.38mm

·         the heating zones: 4 color: 5 units

·         auxiliary drying length: 1000mm

·         rewinding method: friction type

Packaging

Selling Units:	Single item
Single package size:	420X200X240CM
Single gross weight:	3500.0 KG

Product Description:

Applications:
This printing offset is suitable for printing such packing materials as

polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

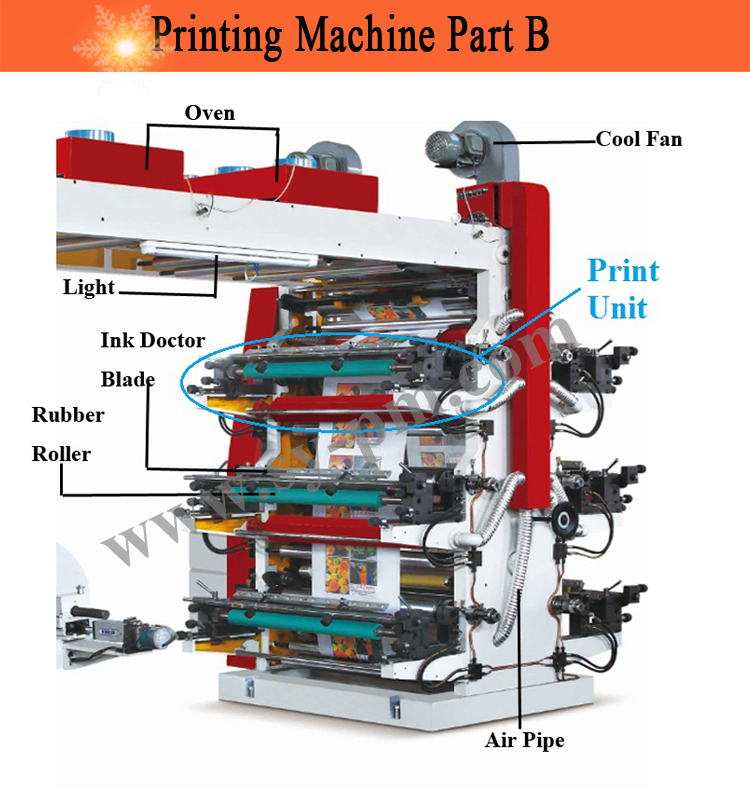

 Technical Features:

1. Easy operation, flexible starting, and accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

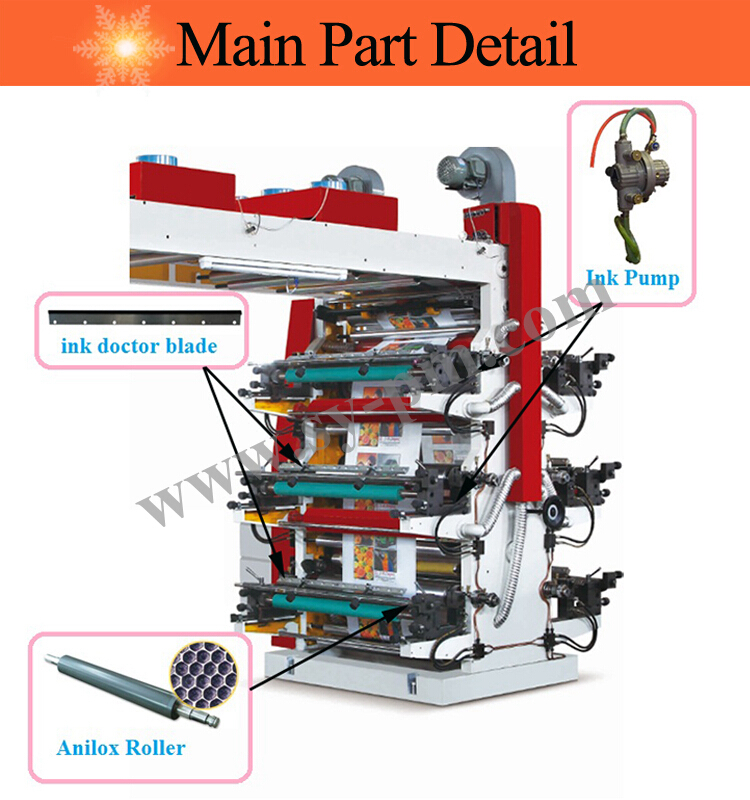

4. The printing ink is spread by the knurled cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360° continuous and adjustable longitudinal register devices.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Main Technical Parameters:

Machine Model	YT-6600	YT-6800	YT-61000
Printing Color	6	6	6
Raw Material Max Width	600mm	800mm	1000mm
Printing Length	180-960mm	180-960mm	180-960mm
Printing Plate Lifting System	manual	manual	manual
Mechanical Speed	60m/min	60m/min	60m/min
Printing Speed	5-50m/min	5-50m/min	5-50m/min
Anilox Cylinder	metal	metal	metal
Register Precision	±0.5mm	±0.5mm	±0.5mm
Rewinder/Unwinder Diameter	450mm	450mm	450mm
Master Motor	4KW	4KW	4KW
Electrical Heater	18KW	27KW	31.5KW
Blower of Heater	650W	700W	750W
Inking Motor	0.55KW	0.55KW	0.55KW
Master Frequency Inverter	4KW	4KW	4KW
Weight	3000kg	3500kg	4000kg
Total Power	25KW	34KW	38KW

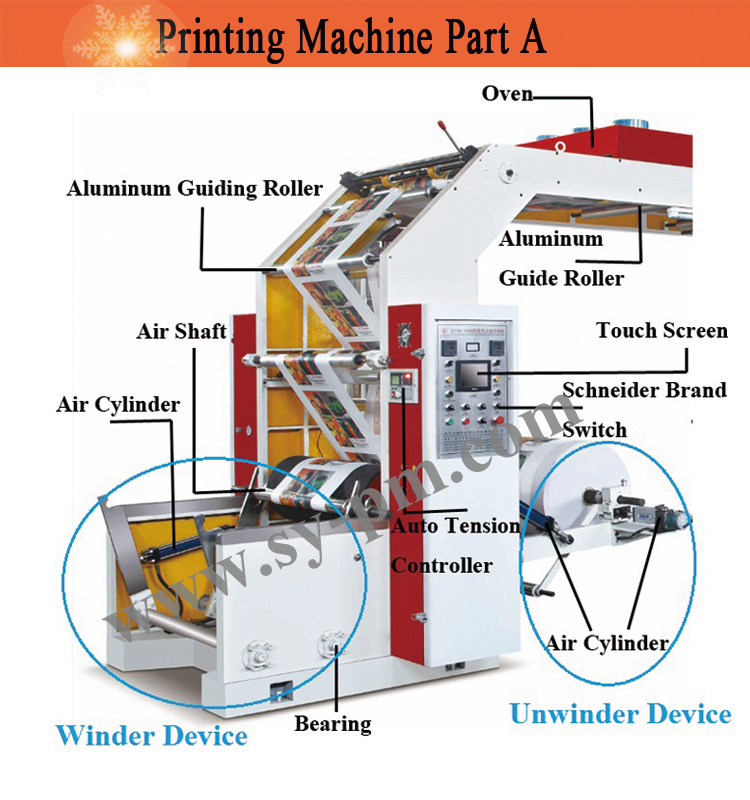

The Main List of Detailed Configuration:

Parts Name	Origin
Main Motor (Frequency Conversion Motor)	(Shanghai)
Ink Motor	(Shanghai)
Host Converter	(Hong Kong)
Fan	Shanghai)

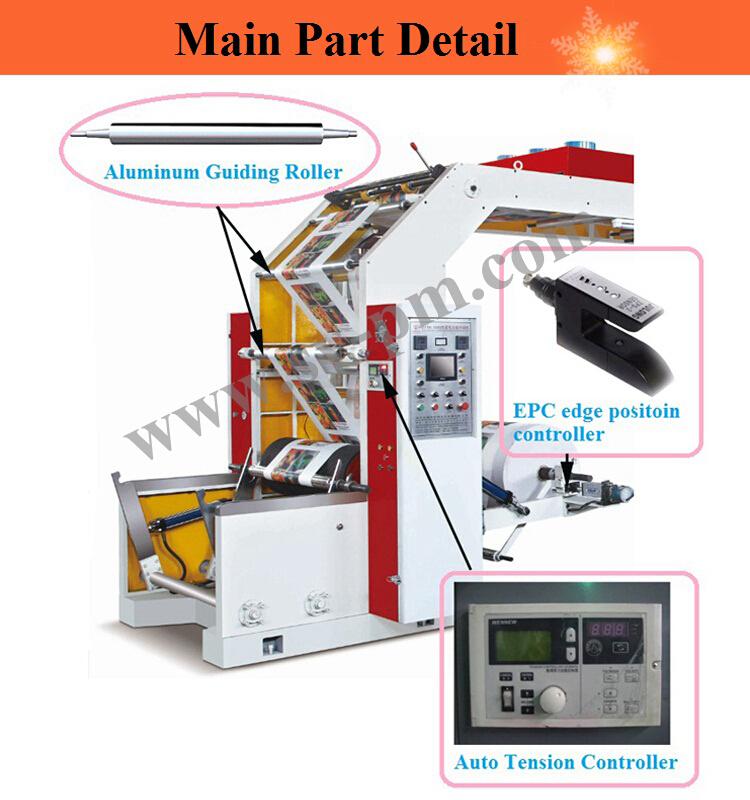

Aluminum Guide Roller	(Taiwan)
Anilox Roller	(China)
Rubber Roller	(China)
Magnetic Braker	(Shanghai)
Tension Controller	(Shanghai)
Low-voltage Electrical Appliances	(China Chint Group)
Photoelectric Correction	(China)
The Switch	(Schneider)
Electrical Control Box	(China)
Pneumatic Components	(China)
Main Frame	(China)
Machine Casting	(Shanghai)
PLC	(Mitsubishi, Japan)
Air Shaft (2pcs)	(China)
Web Guide	(China)
Hydraulic Loading	(China)



Main spare part list

(we have two different brand list for your consideration)

China Domestic Brand

SPARE PART NAME	BRAND NAME	ORIGIN	CERTIFICATE
1.Motor	Ruiyu	Shanghai, china	CE certificate
2.Relay	Lirrd	Wenzhou ,china	CE certificate
3. Inverter	pioneer	Shanghai ,china	CE certificate
4. Button	Pingchuan	Wenzhou ,china	CE certificate
5. Breaker	Chanan	Wenzhou ,china	CE certificate
6. Contactor	Cheo	Wenzhou ,china	CE certificate
7. Ammeter	CNYH	Wenzhou ,china	CE certificate
8. Voltage meter	CNYH	Wenzhou,china	CE certificate



Optional Imported International Brand(cost extra 1000USD)

SPARE PART NAME	BRAND NAME	ORIGIN	CERTIFICATE
1.MOTOR	Simens	Germany	CE certificate
2.Relay	Omron	Japan	CE certificate
3.Temperature meter	Omron	Japan	CE certificate
4.Inverter	Delta	Taiwan,	CE certificate
5.Axcial fan	Longtai	Ningbo ,china	CE certificate
6.Botton	Pingchuan	Wenzhou ,china	CE certificate
7.Breaker	Chanan	Wenzhou ,china	CE certificate
8. Contactor	ChinT,	Zhejiang,china	CE certificate
9. Ammeter	CNYH	Wenzhou ,china	CE certificate
10. Voltage meter	CNYH	Wenzhou,china	CE certificate
